MIDRANGE
Everyone’s perfect day on the water looks a little different. So, whether you’re teaching the grandkids to fish, heading to a bash on the sandbar or cruising the lake on your pontoon, count on Yamaha’s Midrange 40 and 30 hp outboards to bring the fun. Compact and powerful, they’re perfect for light duty on skiffs, jon boats, inflatables and small pontoons or aluminum fishing boats. Whatever you’re up to, get out there with Yamaha’s Midrange 40 and 30 hp outboards.

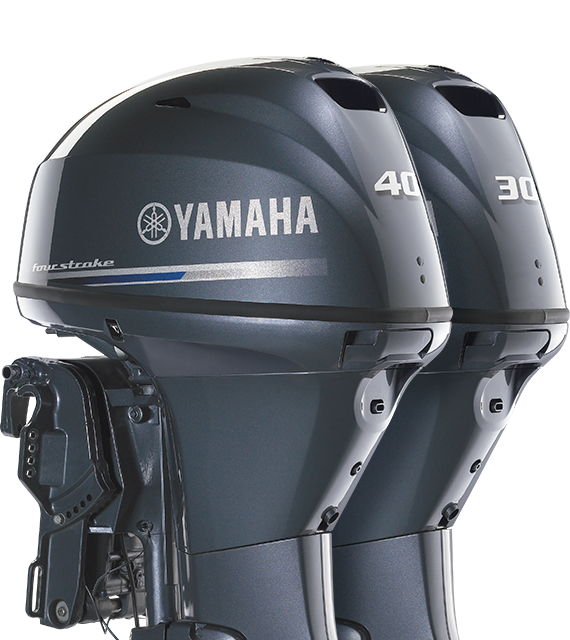

Meet the Lineup
◄ Drag mouse to rotate 360° ►
GRAY
40 HP
Our 747-cc 40-hp midrange provides powerful performance in a compact package that’s available in both propeller and jet-pump driven models. With its single throttle valve, long-track intake manifold and electronic control module, it delivers easy starts, fast acceleration and excellent top-end speed.
- Only 214 pounds
- Available in a 20” shaft
- Powerful 17-amp alternator
- Optional Variable Trolling RPM Switch (VTS®)
40 HP
| Weight † | 97 kg (214 lbs) – 101kg (223 lbs) |
|---|---|
| Full Throttle RPM Range | 5000 ~ 6000 rpm |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner’s manual) |
| Engine Type | 3 cyl |
| Displacement | 747cc |
| Bore x Stroke | 65 x 75mm (2.56 x 2.95 in.) |
| Prop Shaft Horsepower | 40hp at 5500rpm |
| Alternator Output at W.O.T. | 17 Amp |
| Compression Ratio | 9.4:1 |
| Recommended Fuel | Octane 87 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 2-Star |
| Exhaust | Through Propeller |
| Intake | 6 |
| Ignition | CDI Microcomputer |
| Spark Plug | DPR6EB-9 |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 1.7L/1.5L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.00:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20″ |
| Degree of Tilt | 20° |
| Degree of Trim | -3° through +20° |
| Mounting Centers | N/A |
| Steering | |
| Steering Angle (maximum) | 40° from center, either direction |
| Warranty | Limited 3-year Pleasure, 3-year Government, 1-Year Commercial |
◄ Drag mouse to rotate 360° ►
GRAY
30 HP
Our 747-cc 30-hp midrange boasts a streamlined design and solid performance. At just 214 pounds, it’s suitable for lightweight craft such as aluminum fishing boats and inflatables. Its Nitro Assist Tilt makes tilting almost effortless.
- Available for mechanical or tiller-handle control
- Only 214 pounds
- Available in a 20” shaft
- Powerful 17-amp alternator
- Optional Variable Trolling RPM Switch (VTS®)
30 HP
| Weight † | 97 kg (214 lbs) – 101kg (223 lbs) |
|---|---|
| Full Throttle RPM Range | 5000 ~ 6000 rpm |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner’s manual) |
| Engine Type | 3 cyl |
| Displacement | 747cc |
| Bore x Stroke | 65 x 75mm (2.56 x 2.95 in.) |
| Prop Shaft Horsepower | 30hp at 5500rpm |
| Alternator Output at W.O.T. | 17 Amp |
| Compression Ratio | 9.4:1 |
| Recommended Fuel | Octane 87 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 2-Star |
| Exhaust | Through Propeller |
| Intake | 6 |
| Ignition | CDI Microcomputer |
| Spark Plug | DPR6EB-9 |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 1.7L/1.5L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.00:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20″ |
| Degree of Tilt | 65° – 66° |
| Degree of Trim | -3° through +20° |
| Mounting Centers | N/A |
| Steering | |
| Steering Angle (maximum) | 40° from center, either direction |
| Warranty | Limited 3-year Pleasure, 3-year Government, 1-Year Commercial |
